vortex type perfluorinated centrifugal pump

Head: 1-48m
Voltage: 380v
Material: PVDF
Flow rate: 1-230m³/h
Pump Power: 11-22KW
Description

vortex type perfluorinated centrifugal pump(旋涡式全氟离心泵).jpg

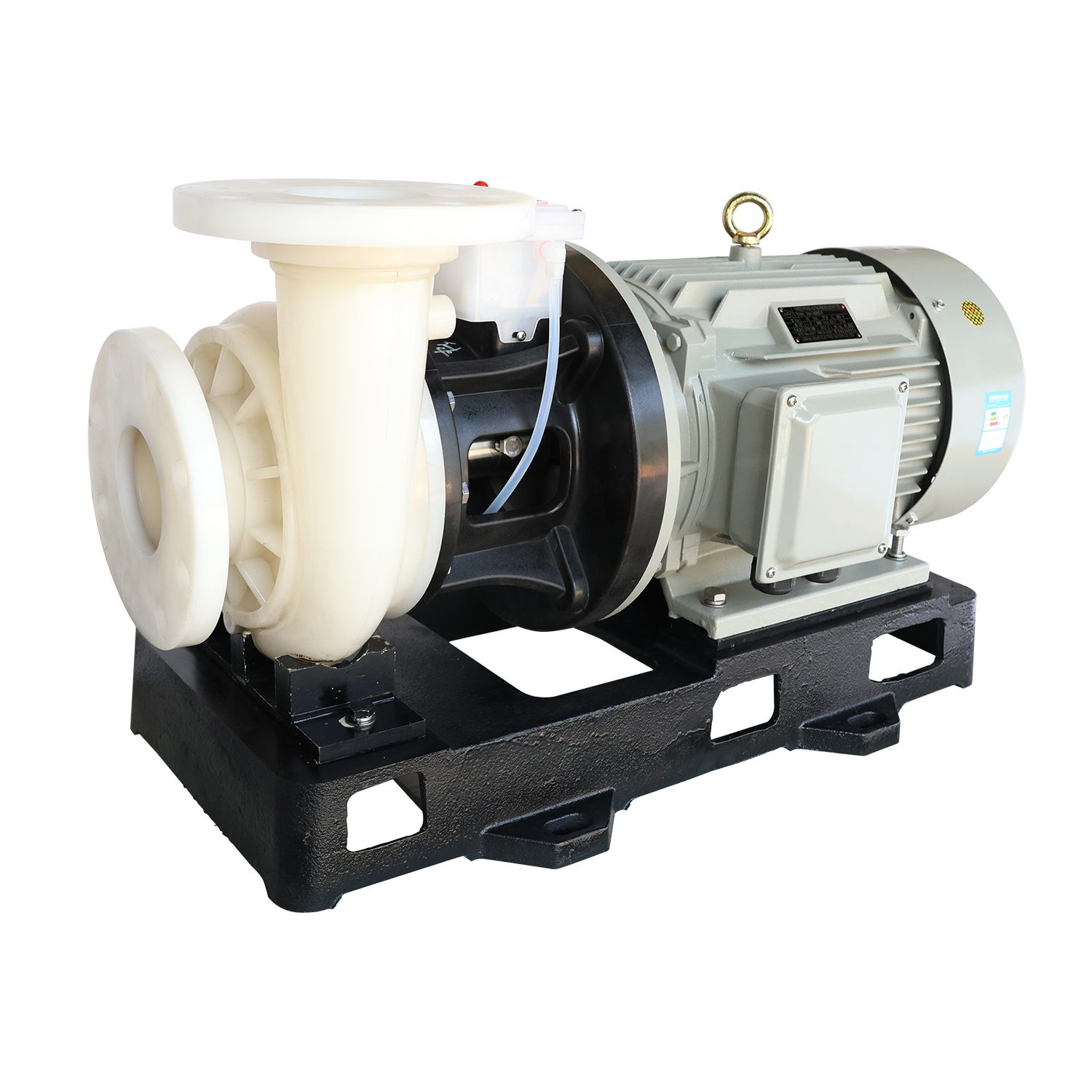

Vortex type perfluorinated centrifugal pump

Model Description

  mcp - 125 - 30 - 2 - v - h - ssic - 5 - bt

  1 - Model No.: MCP, MCPG

  2 - Outlet Bore: 125:5"

  3 - Horsepower: 15:15HP, 20:20HP, 25:25HP, 30:30HP

  4 - Number of poles: 2:2P, 4:4P

  5 - Rubber material: V-VITON, T-special fluorine

  6 - Head: L-low head, H-high head

  7 - Shaft seal material: SSIC

  8 - Frequency: 5-50Hz, 6-60Hz

  9 - Motor explosion-proof grade: CT4-ExdIICT4, BT4-ExdIIBT4

Technical Parameters

  Lift: 1-48m

  Flow: 1-230m³/h

  Material: PVDF

  Voltage: 380V

Four innovations

  1/High flow rate: main body scroll flow channel design, flow rate up to 230m³/h.

  2/High pressure: new impeller, high efficiency hydraulic model design, pressure up to 4.8kg.

  3/Idle-able: equipped with cooling water tank, realize no water can idle.

  4/ More stable: the pump adopts one-piece base design, more stable.

Features

  ※ Vortex worm-type design, effectively improve the fluid passing efficiency, reduce the internal energy loss, improve pump efficiency.

  ※ With its own water tank cooling circulation protection system, it can realize no-load operation and is not easy to damage the seal components.

  Scientific hydraulic model design, combined with fluid motion analysis and modern high-precision manufacturing technology, the overall performance of the pump has been qualitatively improved.

  ※ Adoption of large brand raw materials, high temperature and corrosion resistance is stronger.

  The use of high-quality SSIC wear-resistant sheet and PTFE expansion ring ensures reliable sealing and stable sealing condition during long cycle operation.

Why Choose Us

FAQ
Q

What is your product range?

AWe mainly provide acid and alkali resistant self-priming pumps, acid and alkali resistant vertical pumps, acid and alkali resistant magnetic pumps, metering and dosing pumps, and pharmaceutical filters for more than 10 years. If you have other needs, such as sewage pumps, fluoroplastic pumps, stainless steel pumps, centrifugal pumps, and the pumps listed on our website. We have several partner manufacturers who can supply these pumps.
Q

Are you a manufacturer or a trading company?

AWe are a manufacturer of corrosion-resistant plastic pumps for a wide range of applications such as electroplating, coating, PCB circuit boards, etching, exhaust gases, sewage treatment, etc.
Q

What information should I provide when I need a quote from you?

A1. Pump capacity and total head (working pressure). 2. Liquid medium, medium temperature. 3. Motor: Voltage, frequency. 4. Other specifications the more the better.
Q

If I need these pumps urgently, can they be shipped by air?

AYes, of course we can ship by air. However, I must warn you that the shipping cost will be very expensive.
Q

Do you sell other brands of pumps? Do you accept OEM?

ANo, we do not sell other brands of pumps, but if our brand is suitable for you, you can send me the detailed specifications. We do not accept OEM.
Q

The specifications of our pumps are different from the ones you provide, can you customize them according to my data?

AYes, we can. Please send me your detailed specifications, and then we will select the right pump for you to quote.
