aluminum alloy penumatic diaphragm pump

Head: 84 m
Voltage: 220V/380V
Material: Alufer
Flow rate: 0-1060L/min
Description

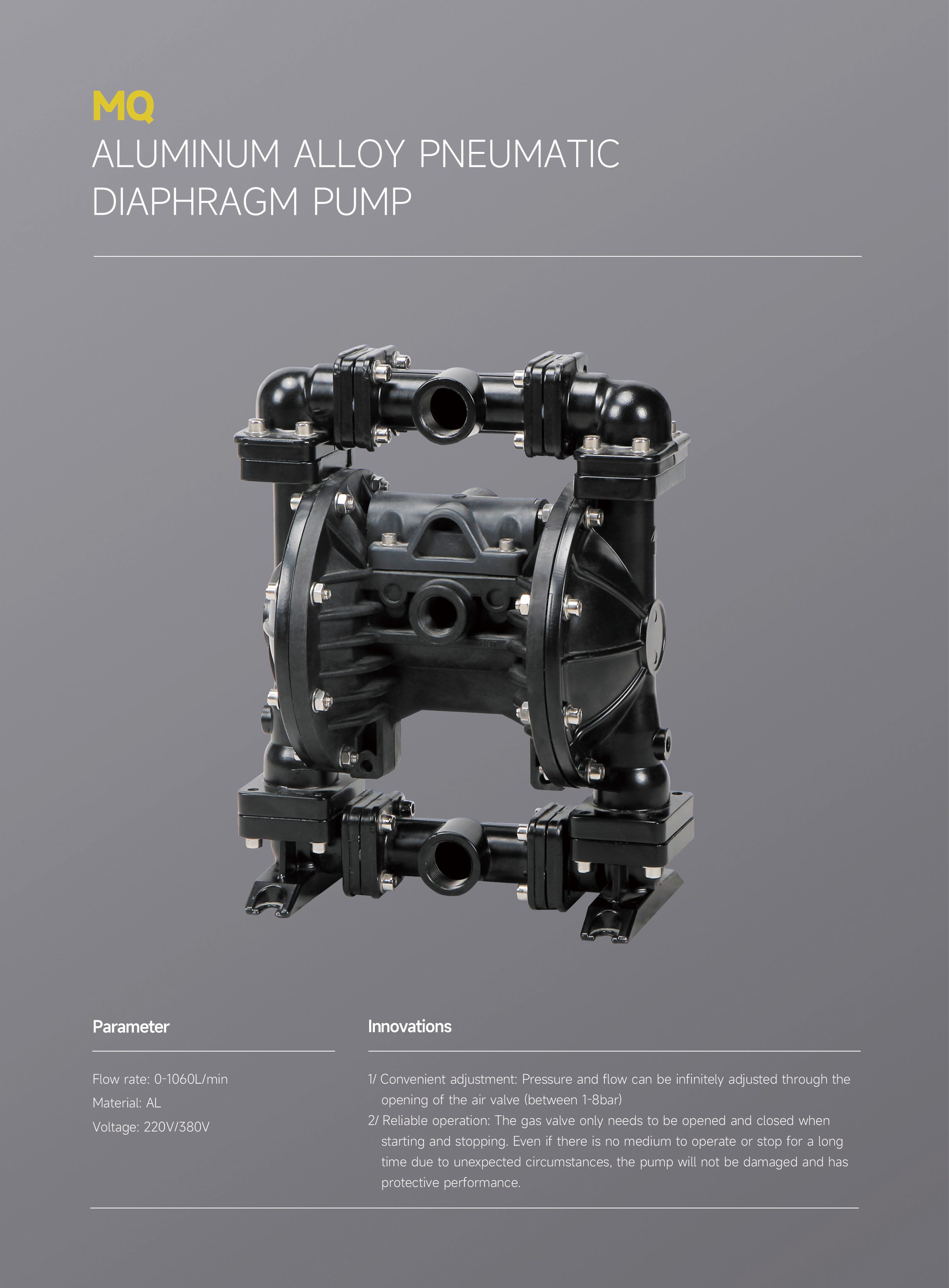

aluminum alloy penumatic diaphragm pump(铝合金隔膜泵).jpg

Aluminum alloy penumatic diaphragm pump

Parameter

  Self-priming head:4 mwc(dry),7.6 mwc(wet)

  Maximum particle diameter:2.5 mm

  Suction discharge outlet:1/4 3/4 in

  Compressed air inlet:3/8 in

  Maximum flow:57 l/min

  [Maximum head]:84 m

  Maximum air supply pressure:8.4 bar

Material

  Pump body:Alufer

  Diaphragm:Shandao rubber, Polyether rubber, Fluororubber, PTFE, EPDM, NBR

  Valve ball:PTFE, Stainless steel, Mountain rubber

  valve seat:SS304, SS316

  Intermediate:Polypropylene

Weight

  Polypropylene / Polyformaldehyde pump:1.5kg

  PVDF pump:2.0kg

Why Choose Us

FAQ
Q

What is your product range?

AWe mainly provide acid and alkali resistant self-priming pumps, acid and alkali resistant vertical pumps, acid and alkali resistant magnetic pumps, metering and dosing pumps, and pharmaceutical filters for more than 10 years. If you have other needs, such as sewage pumps, fluoroplastic pumps, stainless steel pumps, centrifugal pumps, and the pumps listed on our website. We have several partner manufacturers who can supply these pumps.
Q

Are you a manufacturer or a trading company?

AWe are a manufacturer of corrosion-resistant plastic pumps for a wide range of applications such as electroplating, coating, PCB circuit boards, etching, exhaust gases, sewage treatment, etc.
Q

What information should I provide when I need a quote from you?

A1. Pump capacity and total head (working pressure). 2. Liquid medium, medium temperature. 3. Motor: Voltage, frequency. 4. Other specifications the more the better.
Q

If I need these pumps urgently, can they be shipped by air?

AYes, of course we can ship by air. However, I must warn you that the shipping cost will be very expensive.
Q

Do you sell other brands of pumps? Do you accept OEM?

ANo, we do not sell other brands of pumps, but if our brand is suitable for you, you can send me the detailed specifications. We do not accept OEM.
Q

The specifications of our pumps are different from the ones you provide, can you customize them according to my data?

AYes, we can. Please send me your detailed specifications, and then we will select the right pump for you to quote.
